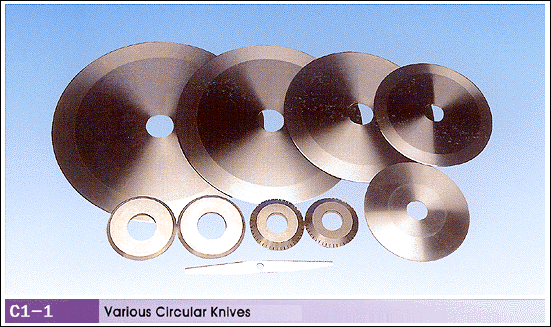

Original form(원형형상) Single Edge

Property(재질)

  • SKH-9 (Hardness HRC 62-65)
  • SKD-11(Hardness HRC 57-61)
  • SUS-420J2 (Hardness HRC 53-60)
  • Tungsten Carbide (TC)


Standard Specification

Outer Diameter 80 100 125 150 200 300 350 400 450 500
Inner Diameter 25.4
(19.05)
25.4
(19.05)
25.4
(32.00)
25.4
(40.00)
25.4
(40.00)
25.4
(40.00)
25.4
(40.00)
25.4
(40.00)
25.4
(40.00)
25.4
(40.00)
T 0.8
1.0
1.0
1.5
1.0
1.3
1.5
2.0
1.3
1.5
1.8
2.0
1.5
2.0
2.5
3.0
2.0
2.5
3.0
3.2
2.5
3.0
3.5
2.5
3.0
3.5
2.5
3.0
3.5
3.0
4.2
5.0
4.0
4.5
5.0



Usage(용도)

  • Tape Cutter, Rubber Belt, Paper tube, Paper Cone, Pinking Blade For Factories, PVC Cutter, Metal Sheet Processor / Cutter, Corrugated Carton Box.
  • 테이프절단용, 고무벨트, 지관·콘지관용, 섬유가공용, 연질PVC절단용, 철판가공용, 제지, 식품, 화장지, 페파, 골판지용
